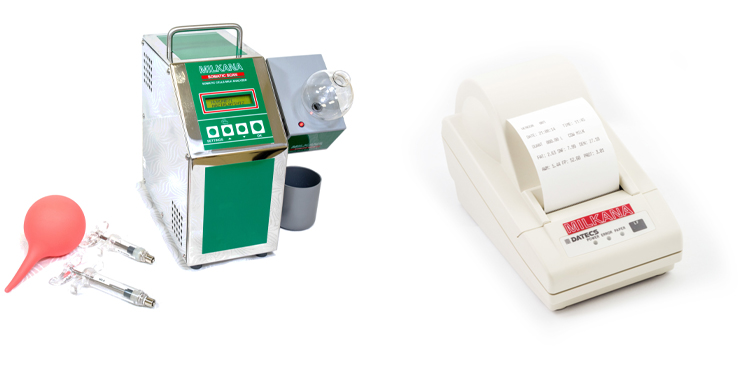

MILKANA® Somatic Scan
Somatic Cell Count: 90.000 – 1.500.000 cell/ml
MILKANA® Somatic Scan is a fast, reliable, and cost-effective solution for somatic cell count analysis in raw milk, supporting quality control processes from farm to laboratory.
The analysis is based on viscosity measurement technology. During testing, a specially developed anionic surfactant reagent (Milkoprim Agent) is added to the milk sample. The reagent dissolves the plasma membrane and nuclear envelope of somatic cells, forming a gel structure that increases the viscosity of the milk. The device then accurately determines the somatic cell count based on this viscosity change.
MILKANA® Somatic Scan delivers the results in just 1 minute (including sample prepaation), helping dairy producers monitor milk quality quickly and efficiently.
Highligths
affordable & efficient
portable & light-weight
user friendly
simple calibration
12 V option for car use
lightened LCD screen
data collection system
proven method
software available
Technical services
easy to use and clean
cost effective
low power consumption
practical and simple design
USB&RS-232 connection
results in 1 minute (including sample preparation)
test with very small amount of milk (10 ml)
Application Areas
Farm
Milk stations
Laboratory
R&D
Dairy science
Technical Specifications
| MEASURING PATAMETERS | MEASURING RANGE & ACCURANCY |
|---|---|
| Measuring Range - Somatic Cell Count | 90.000 – 1.500.000/ml |
| Accuracy | ±5% |
| Average Measuring Time | 1 minute |
| MECHANICAL PARAMETERS | |
|---|---|
| Dimensions (WxDxH) | 240 x 240 x 300 mm |
| Net Weight | 5 kg |
| Sample Volume | 10 ml |
| ENVIRONMENTAL CONDITIONS |
|
|---|---|
| Ambient Air Temperature | 15°C – 30°C |
| Ambient Relative Humidity | 30 – 80% |
| ELECTRICAL PARAMETERS | |
|---|---|
| Power Consumption | 30 W max |
| AC Power Supply Voltage | 220 V ± 10/15% |
| DC Power Supply Voltage | 12 – 14.2 V |
