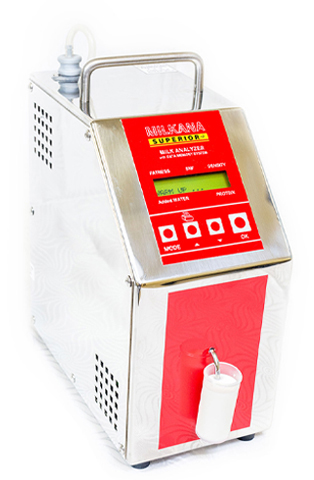

MILKANA® Superior Plus
Multi-Parameter: 6 parameters, 90 seconds
MILKANA® Superior Plus is a reliable, fully automated multi-parameter milk analyzer designed for raw milk analysis. Utilizing advanced ultrasonic technology, it delivers fast and accurate measurements without the need for chemicals, reagents, or additional consumables.
Equipped with an RS-232&USB interface and automatic data transfer system, it simplifies quality control processes and improves operational efficiency.
Combining laboratory-level accuracy with high performance, MILKANA® Superior Plus provides test results in just 90 seconds
Highligths
affordable & efficient
portable & light-weight
user friendly
simple calibration
ultra-sound system
12 V option for car use
no chemicals needed
lightened LCD screen
Cow/Sheep/Goat/Buffalo
data collection system
software available
CIP and manual cleaning
Technical services
easy to use and clean
USB&RS-232 connection
Application Areas
Farm
Milk stations
Laboratory
R&D
Dairy science
Technical Specifications
| MEASURING PATAMETERS | MEASURING RANGE & ACCURANCY |
|---|---|
| Fat | 0,5 – 9% (±0,1%) |
| Solid Non-Fat (SNF) | 6 – 12% (±0,2%) |
| Density | 1,0260 g/cm3 – 1,0330 g/cm3 (±0,0005g/cm3) |
| Protein | 2 – 5% (±0,2%) |
| Freezing Point | (-1°C) – 0°C (±0,015°C) |
| Added Water | 0% – 60% (±5%) |
| MECHANICAL PARAMETERS | |
|---|---|
| Dimensions (WxDxH) | 130 x 260 x 235 mm |
| Net Weight | 4,1 kg |
| Sample Volume | 15 ml |
| ENVIRONMENTAL CONDITIONS |
|
|---|---|
| Ambient Air Temperature | 15°C – 30°C |
| Ambient Relative Humidity | 30 – 80% |
| Milk Temperature | 5° – 35°C |
| ELECTRICAL PARAMETERS | |
|---|---|
| Power Consumption | 30 W max |
| AC Power Supply Voltage | 220 V ± 10/15% |
| DC Power Supply Voltage | 12 – 14.2 V |
Certificates
